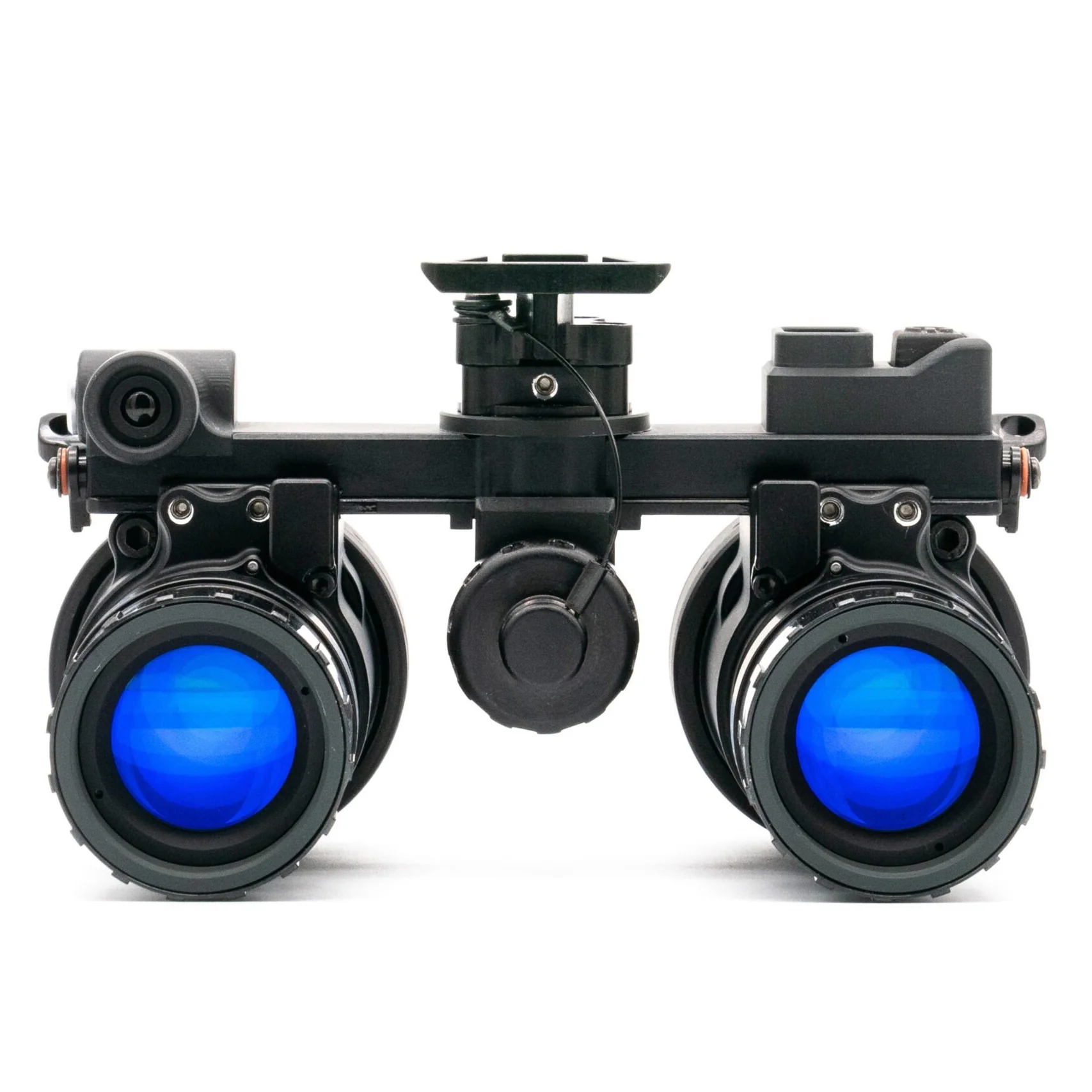

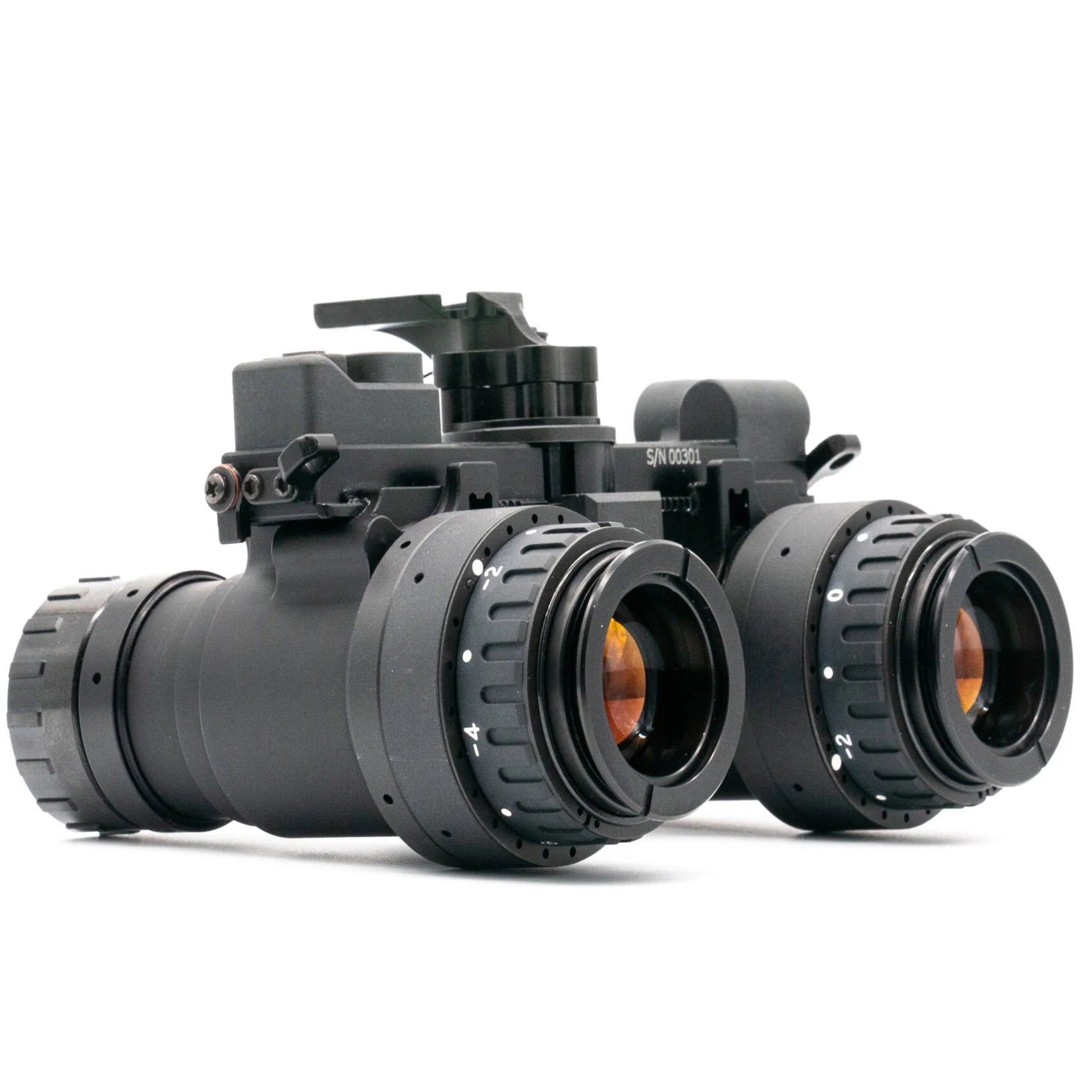

RPNVG | Rugged Gen 3 WP Goggle with a 65° Panning View

• The AB Night Vision RPNVG is a tough panning night vision goggle that helps you see more in the dark. Made for the most demanding jobs, it uses high-quality Gen 3 White Phosphor tubes to give you a sharp, clear picture when it matters most.
• See Over 60% More at a Glance: Instantly widen your view from a normal 40 degrees to a huge 65 degrees. This lets you check your surroundings without turning your head, giving you better awareness when every second counts.
• Built to Survive Any Mission: Made from strong 7075 aluminum, these goggles can take a beating. They are also waterproof down to 66 feet, so you can count on them in any weather.
• Get Two Tools in One: Each side pod comes off without any tools. This lets you turn your goggle into two separate monoculars, giving you more options in the field.

RPNVG Review

What are some common accessories to add to the AB RPNVG?

Mounting Interfaces for the RPNVG

• Wilcox G24: The industry-standard helmet mount for night vision systems. It provides a secure, wobble-free connection for the RPNVG's dovetail interface, ensuring optical alignment is maintained. Its breakaway feature enhances operator safety, while its wide range of adjustments allows for a perfect fit and stowage position.

Mounting Platforms for the RPNVG

• Galvion Caiman TL: A high-cut ballistic helmet system designed to provide a lightweight, stable platform for the RPNVG Goggles. Its rigid shell minimizes flex, ensuring the goggle remains secure during dynamic movement.
• Team Wendy Exfil SL: This ballistic helmet offers an optimized mounting base for the RPNVG. Its integrated Wilcox shroud and stable suspension system work together to create a secure, comfortable setup for extended field use.
• Ops Core FAST SF Gen II: A premier ballistic helmet that serves as a robust foundation for the RPNVG. The high-cut design allows for seamless integration with communication headsets, while its stiff construction provides an exceptionally stable platform for night vision operations.

System Balancing for the RPNVG

• Ops Core Counterweight: This customizable weight kit attaches to the rear of the helmet to directly offset the forward-mounted weight of the RPNVG. This enhances comfort and reduces neck fatigue during long-duration missions.
• Team Wendy Counterweight: A purpose-built pouch and weight system that secures to the back of the helmet. It perfectly balances the RPNVG, improving system stability and operator comfort for sustained operational readiness.

Extended Power Systems for the RPNVG

• Wilcox Aeronox Battery Pack: An external power supply that connects directly to the RPNVGs auxiliary LEMO port. It dramatically extends the goggle's operational runtime, making it ideal for multi-night missions while also serving as a functional counterweight to balance the system.

AB NightVision RPNVG Features & Specifications

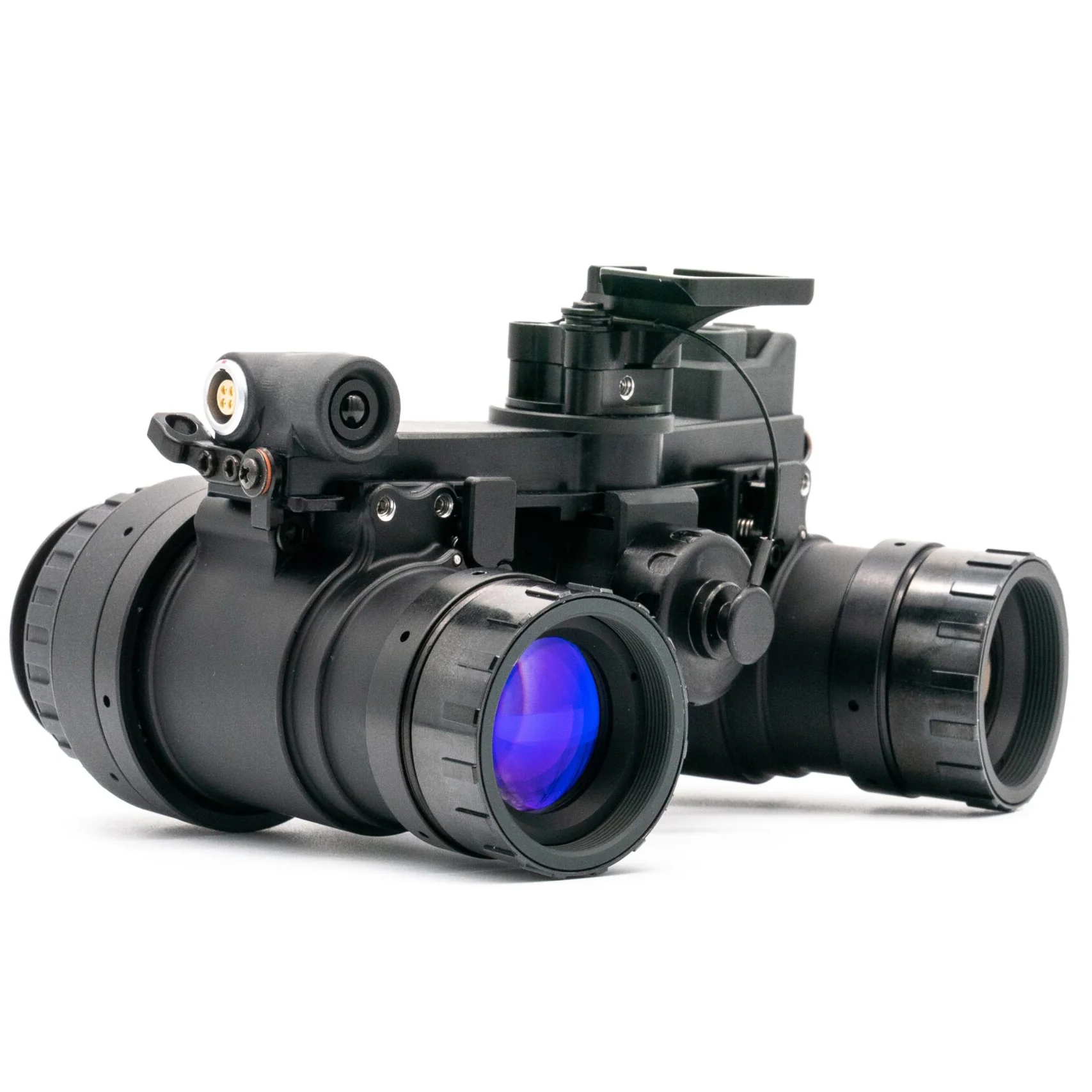

The AB NightVision Ruggedized Panning Night Vision Goggle delivers a decisive advantage in low-light operations through superior situational awareness and durability. Its defining feature is the ability to pivot the optical pods, expanding the user's field of view from a standard 40° up to 65°, allowing threats to be detected without head movement. This capability is housed in an incredibly tough 7075 aluminum chassis that is waterproof to 66 feet, ensuring performance in the harshest conditions. With a modular design that allows the pods to be detached for use as individual monoculars, the RPNVG offers unmatched flexibility for any mission.

Key Features

• Expanded Field of View: Pivoting optical pods increase the horizontal field of view from 40° to 65° for enhanced situational awareness.
• Ruggedized Construction: The housing is machined from 7075 aluminum for maximum durability in demanding operational environments.
• Waterproof: The system is submersible up to 66 feet, ensuring reliability in all weather conditions.
• Modular Design: Each optical pod can be removed from the bridge without tools to be used as a standalone monocular with a separate power supply.

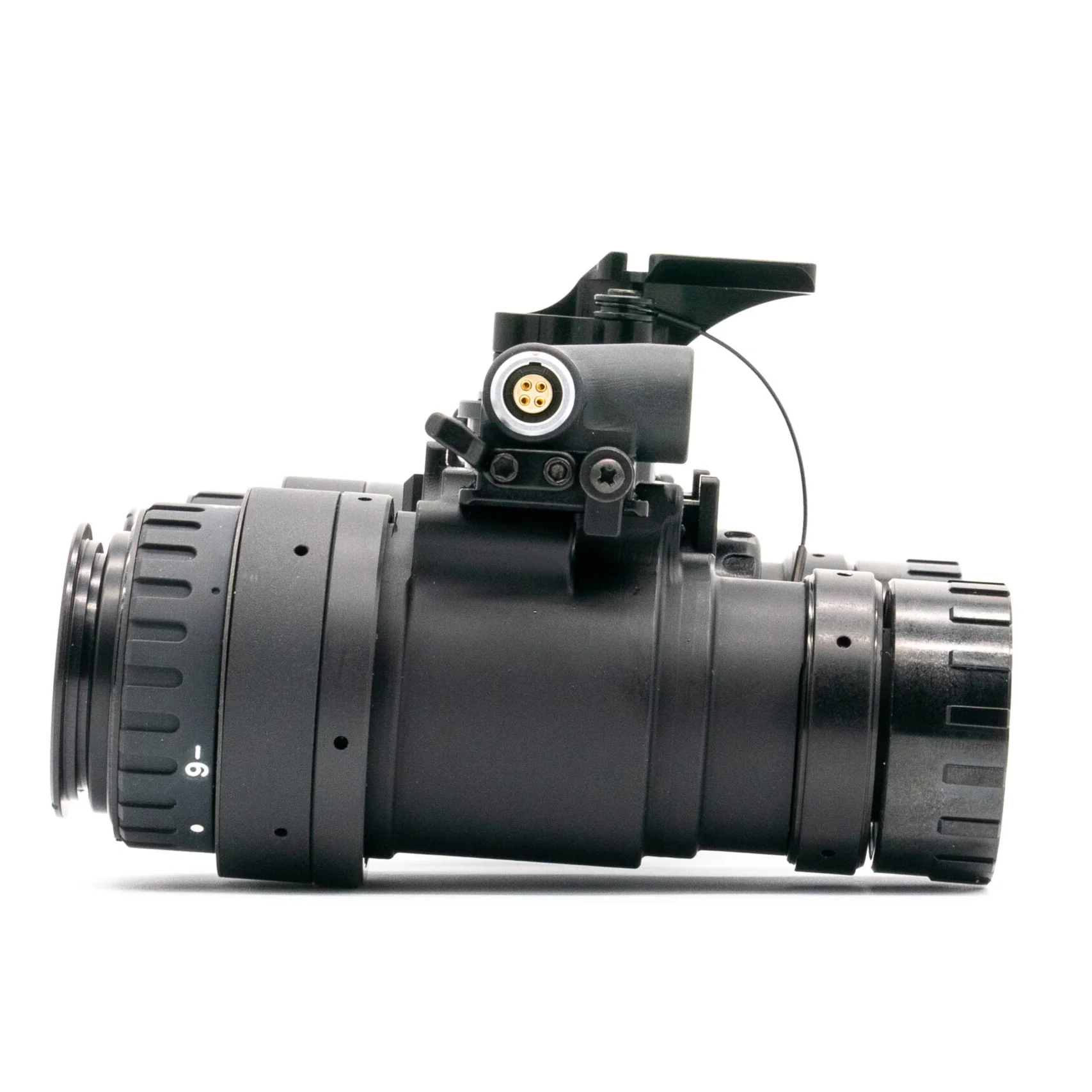

• Dual Power Capability: Operates on a single onboard CR123 battery or can be connected to an external battery pack via the integrated LEMO port.

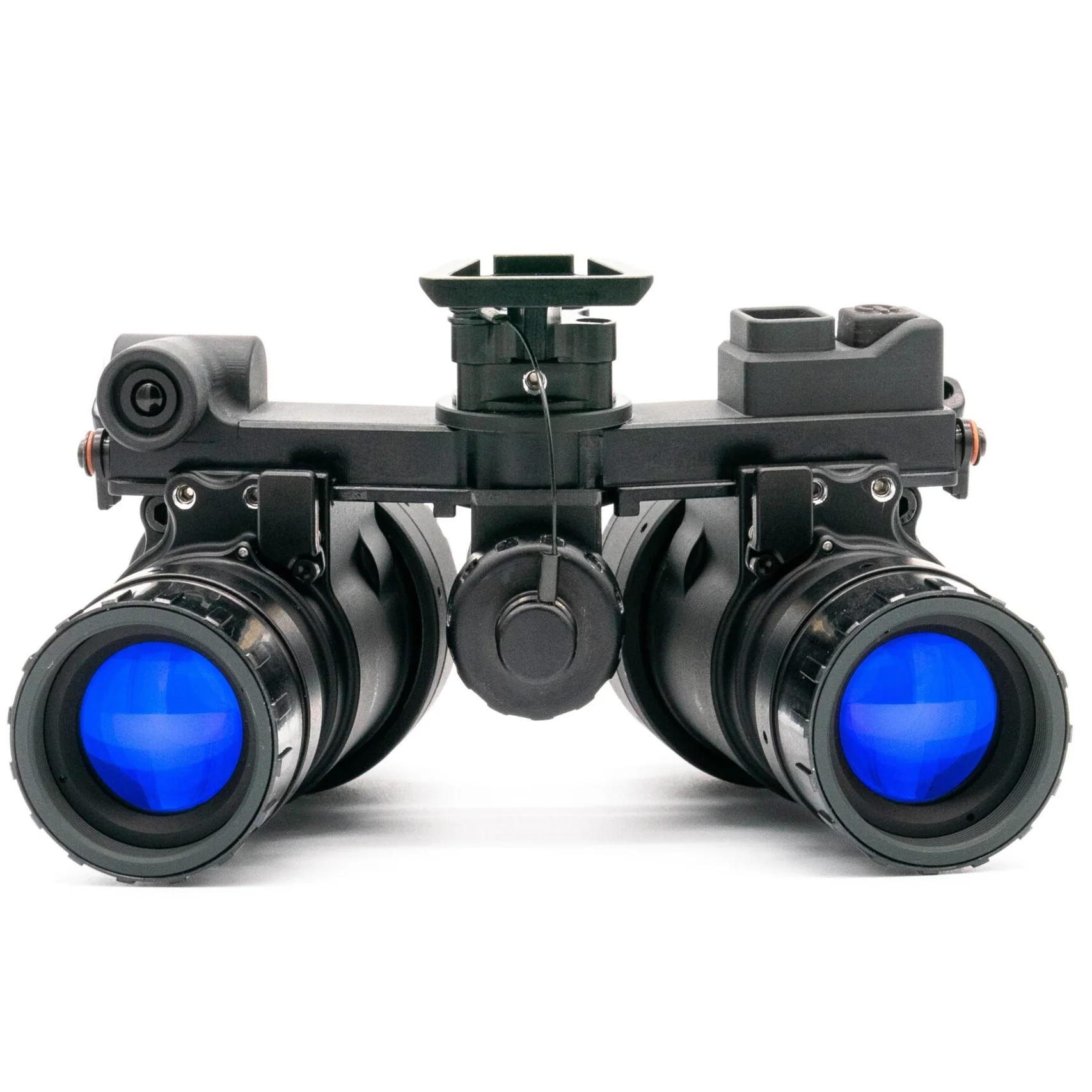

• Onboard IR Illuminator: Features a built-in IR illuminator for visibility in complete darkness.
• High-Performance Image Tubes: Equipped with Gen 3 Filmless White Phosphor image intensifier tubes that provide exceptional clarity and low-light performance.

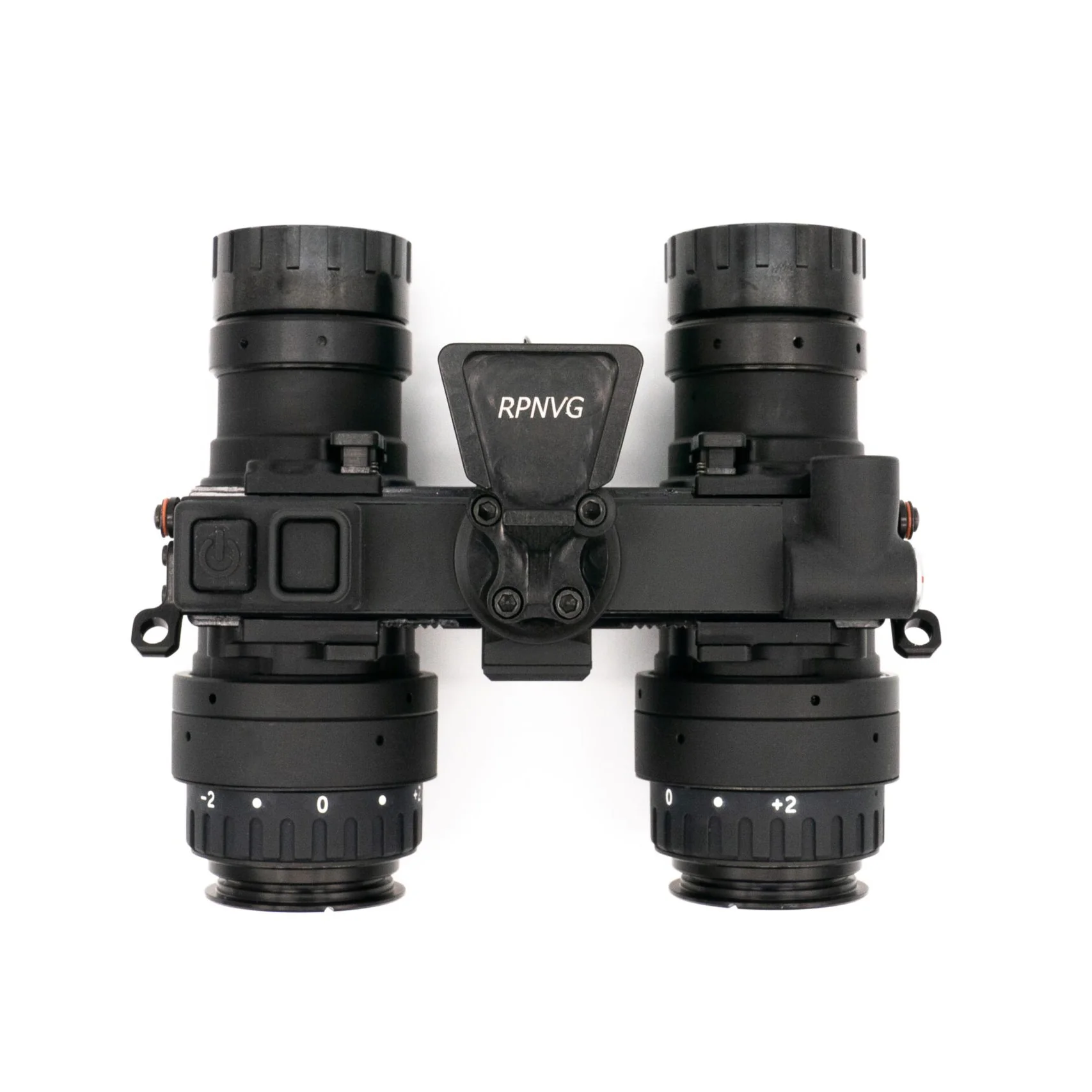

• Precise Adjustments: Features refined interpupillary distance (IPD) adjustment points on each pod for precise alignment with the user's eyes.

Specifications

• Magnification: 1x
• Field of View: 40° to 65°, adjustable
• RPNVG Weight: 621 g (21.9 oz) with battery
• Power Source: (1) CR123 Battery or external battery pack via LEMO port
• Battery Life: Approximately 16 hours on one CR123 battery
• Submersible Depth: 66 feet

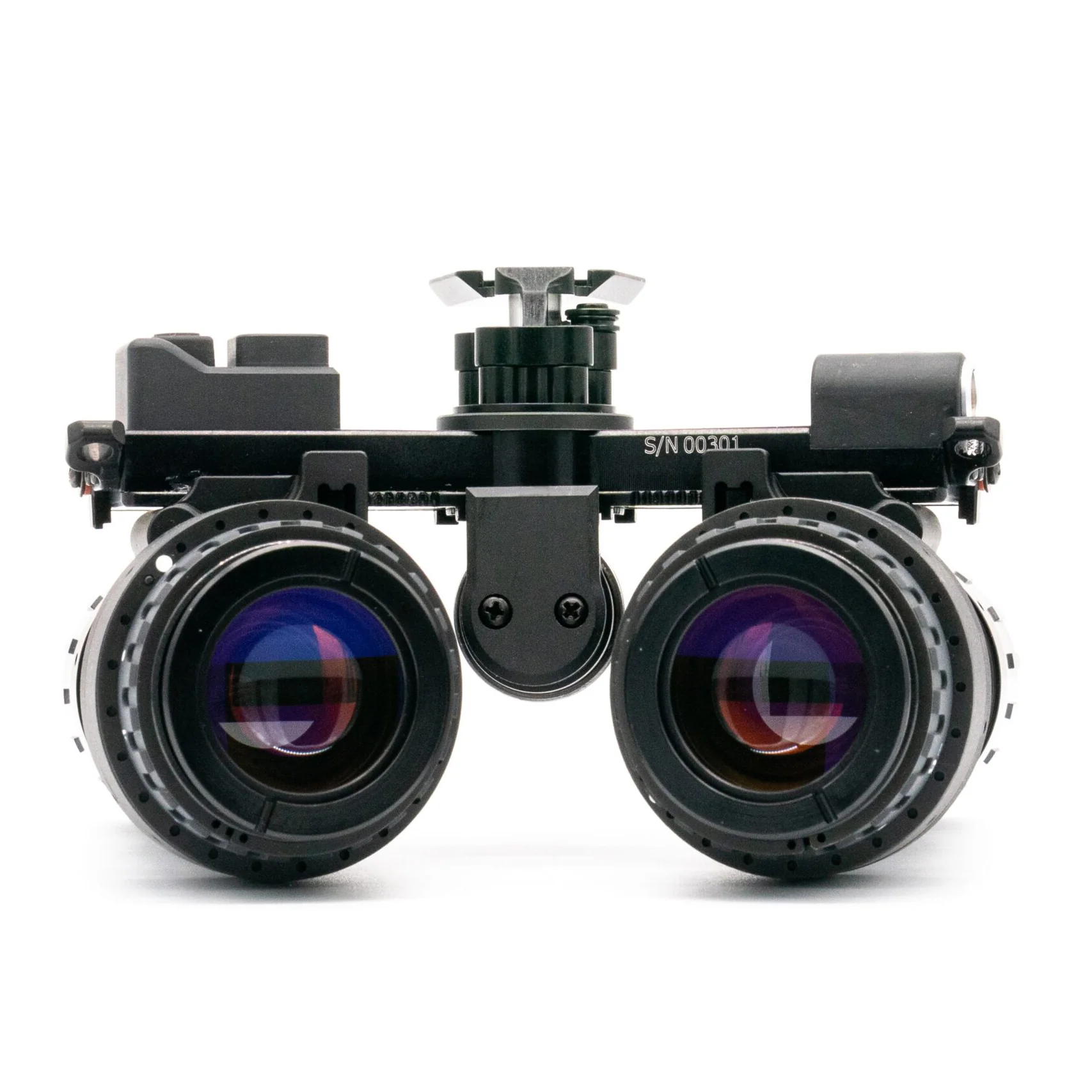

• Objective Lens: 27mm, f/1.2
• Focus Range: 9.8 inches to infinity
• Diopter Adjustment: -6 to +2
• Eye Relief: 25mm
• Interpupillary Adjustment: 51mm to 73mm

What's in the box of the RPNVG?

• (1) AB Night Vision RPNVG unit
• (1) Pelican-style hard case
• (1) Set of spec sheets for your specific unit


RPNVG FAQs

What is the AB Night Vision RPNVG?

The RPNVG is a very tough night vision goggle. Its key feature is that you can adjust how wide of an area you can see, which helps you get a better sense of your surroundings in the dark.

What does the "panning" feature do?

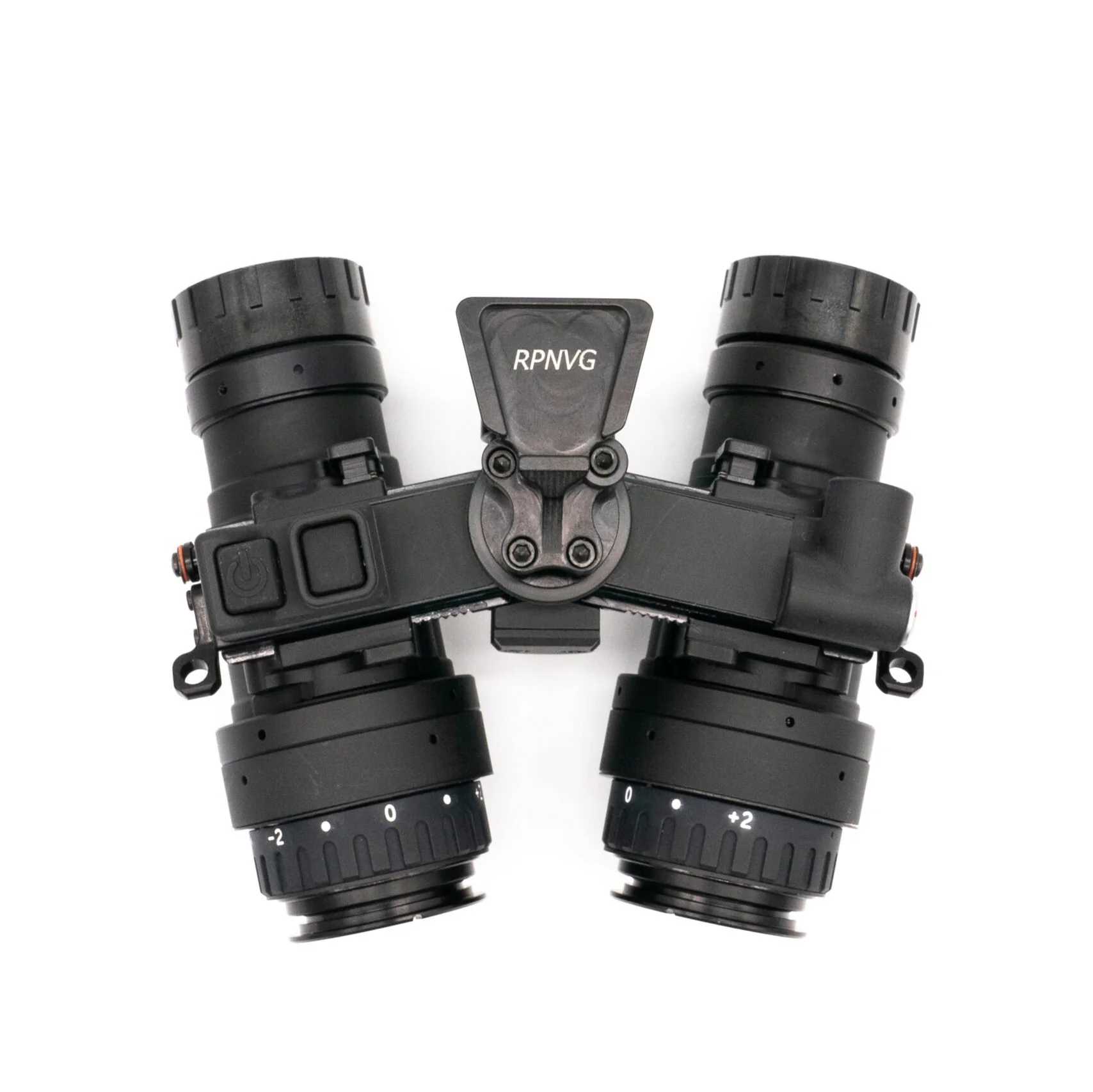

The panning feature lets you pivot the eyepieces outward. This widens your field of view from a standard 40 degrees to a much wider 65 degrees. This means you can see more to your left and right without having to turn your head.

How is the RPNVG powered?

 The goggle runs on a single CR123A battery. It also has a built-in LEMO port, which allows you to connect an external battery pack for longer use.

Can I use this as a single monocular?

Yes, each side pod can be removed from the bridge without any tools and used as a separate monocular. To use it this way, you will need to buy a separate power supply for the pod.

How do I adjust the goggles to fit my eyes?

The RPNVG has interpupillary adjustment points on each pod with a simple push-button system. This lets you slide the pods to perfectly line up with your eyes, making them more comfortable to use.

How durable is the RPNVG?

It is built to be very durable, with a housing made from strong 7075 Aluminum. The goggle is also waterproof and can be submerged in water up to 66 feet deep, making it reliable in wet conditions.

Where can I find the RPNVG for sale?

The AB Night Vision RPNVG is available for purchase directly through Atomic Defense. As an authorized and trusted dealer of AB Night Vision products, we guarantee you will receive a genuine, top-quality unit that ensures authenticity and optimal performance. Our dedicated team is equipped to provide reliable and knowledgeable customer support to assist with any questions you may have and ensure a satisfactory purchase experience.
